Heat for Days.
Load Less Often.

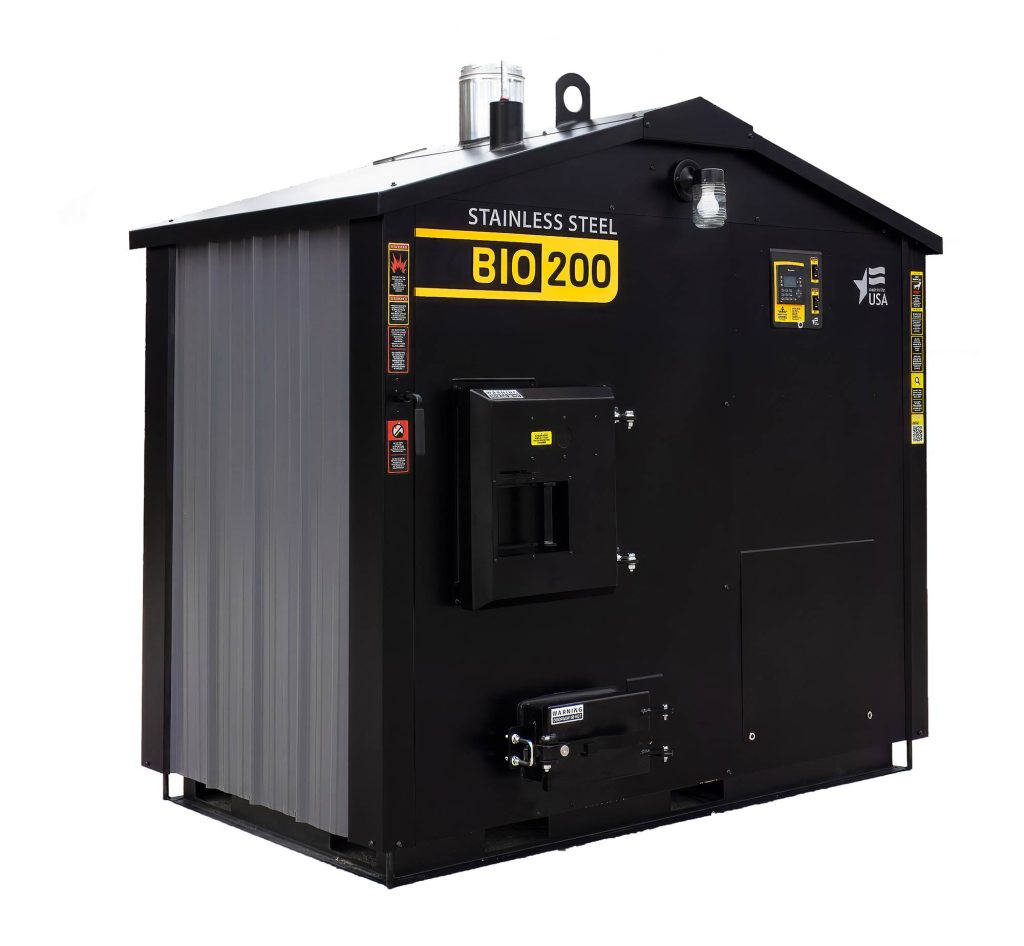

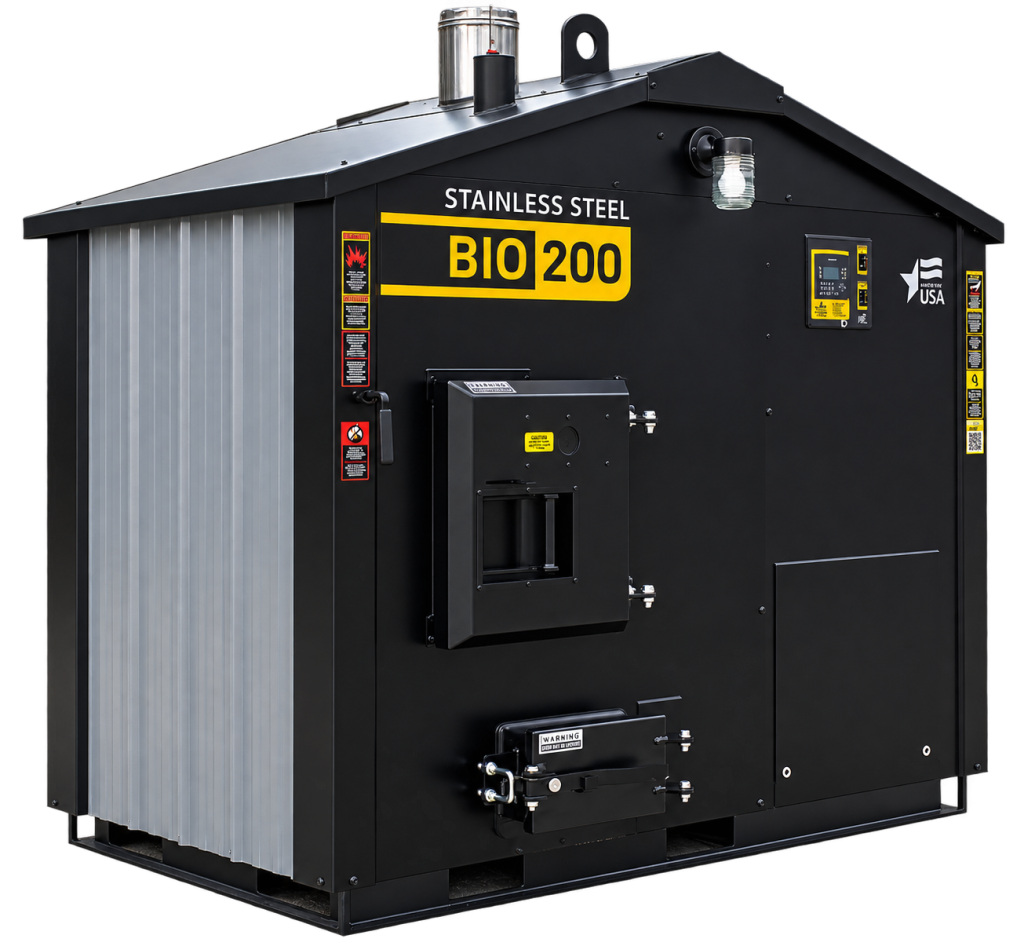

Flex Series BIO 200
Flex Automated Pellet Series
Outdoor Furnaces
The Flex Series combines efficient biomass heating with an advanced automated fuel hopper designed to dramatically reduce the need for frequent loading. Depending on heating demand, fuel type, and outdoor temperature, the large-capacity hopper can provide heat for several days to weeks between refills—making it an ideal solution for homeowners who travel, work away from home, or simply want less hands-on heating.
BIO200
Flex series
Features
409 Titanium Stainless Steel
Heavy-duty 2,200 lb unit constructed with 409 Titanium Stainless Steel for the durability and long-term performance.

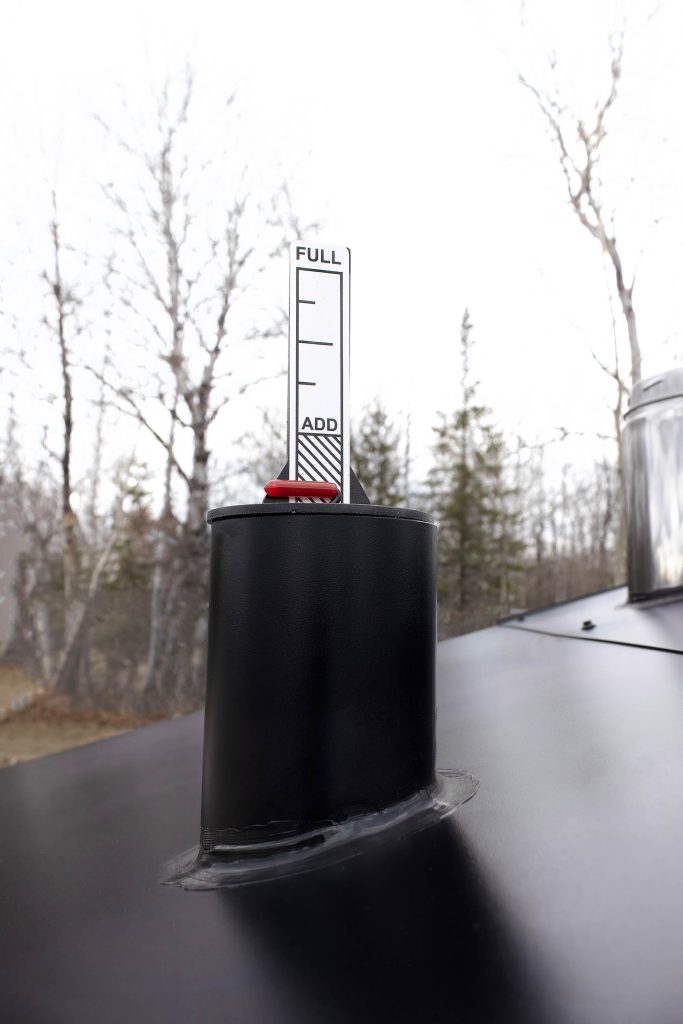

Water Level Indicator
An easy-to-read water level indicator helps you quickly monitor the furnace and know when additional water is needed.

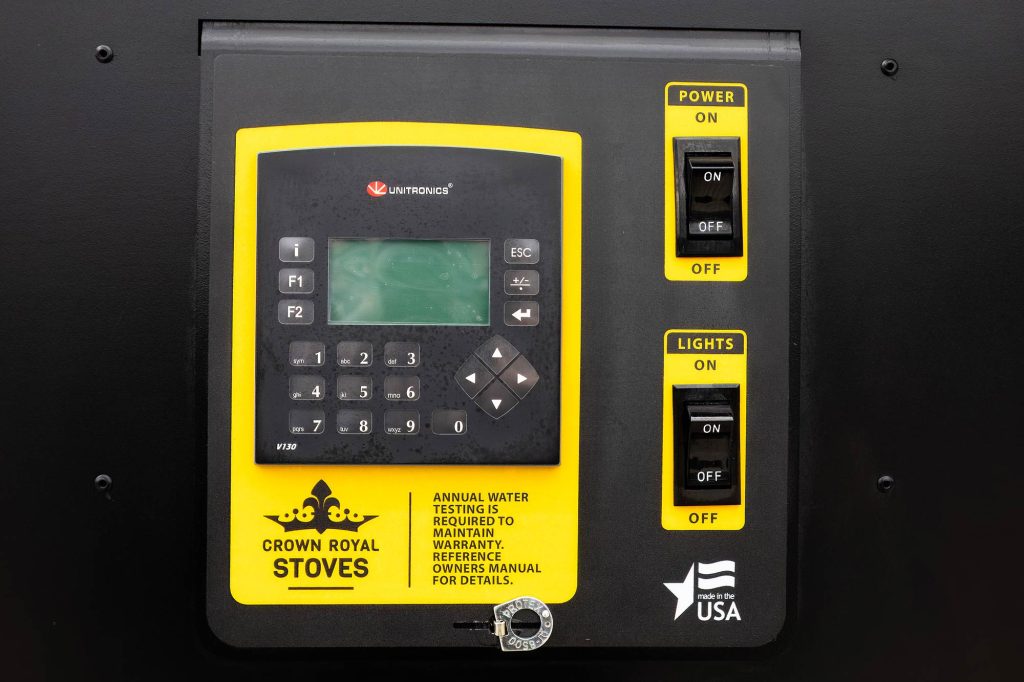

Digital Control Panel
Easy-to-read digital controls make it easy to adjust temperature targets and monitor furnace operation. The illuminated display is easy to read day or night. They are also economical and easy to replace.

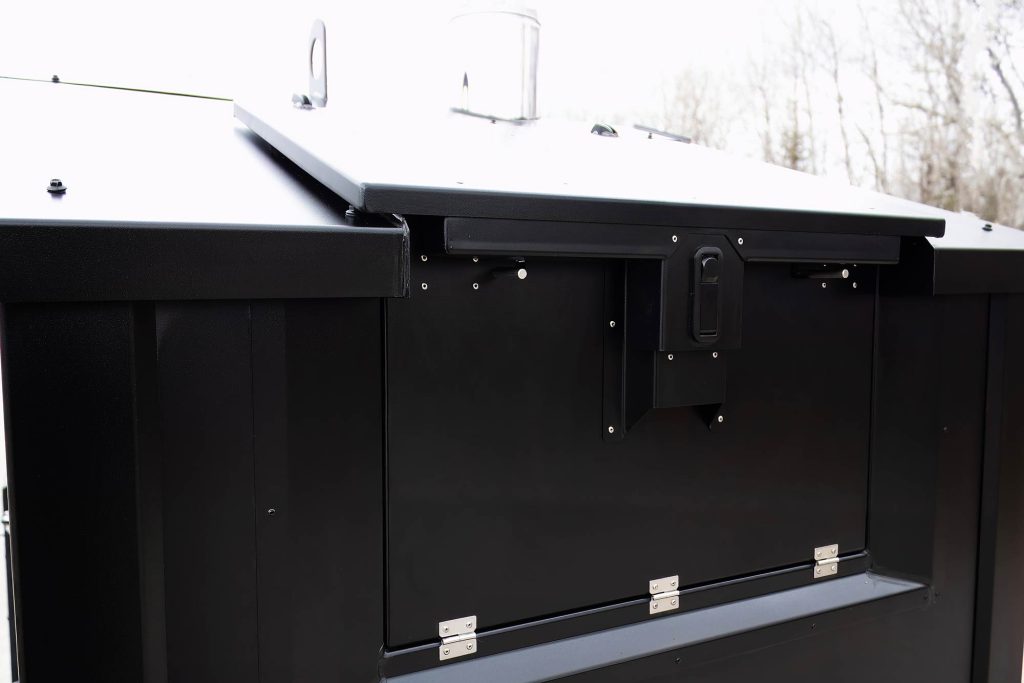

On-Board Hopper

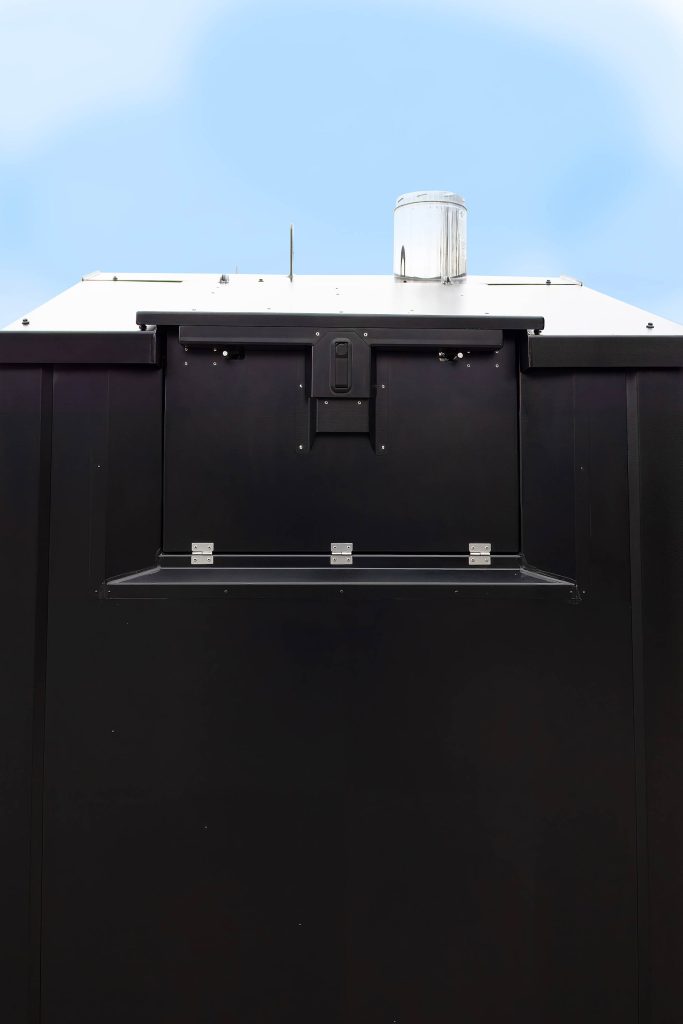

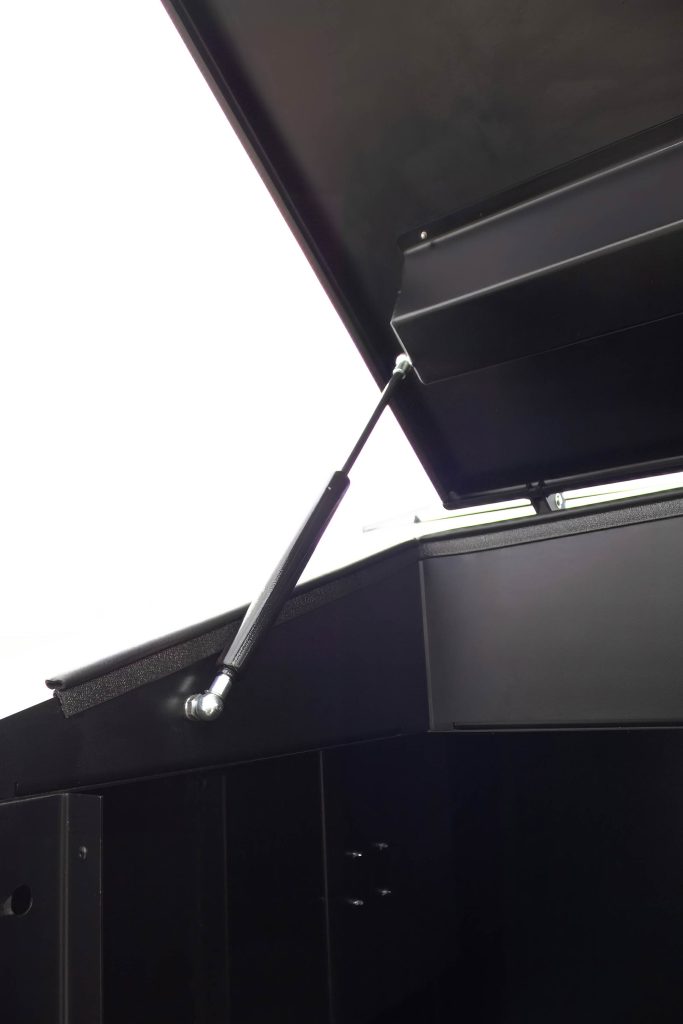

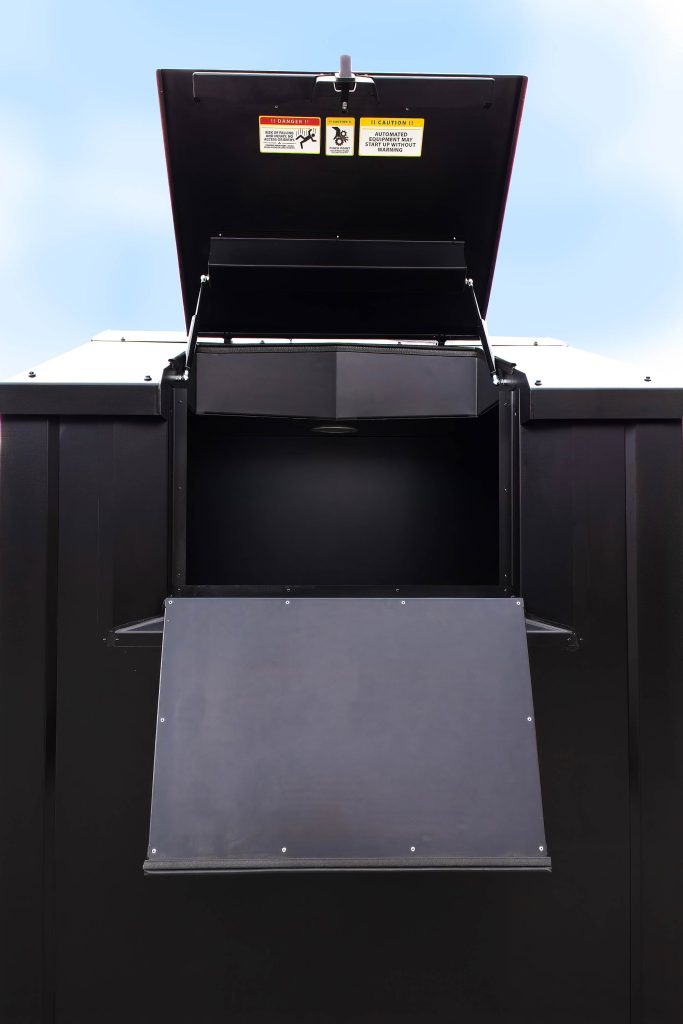

The large 1,400 lb capacity hopper provides extended fuel storage, reducing the need for frequent refills and the EZ-Fill loading door makes for easy, convenient refueling.
Hot Air Ignition System
The automated ignition system provides rapid, ultra-reliable fire startups without the need for manual lighting.

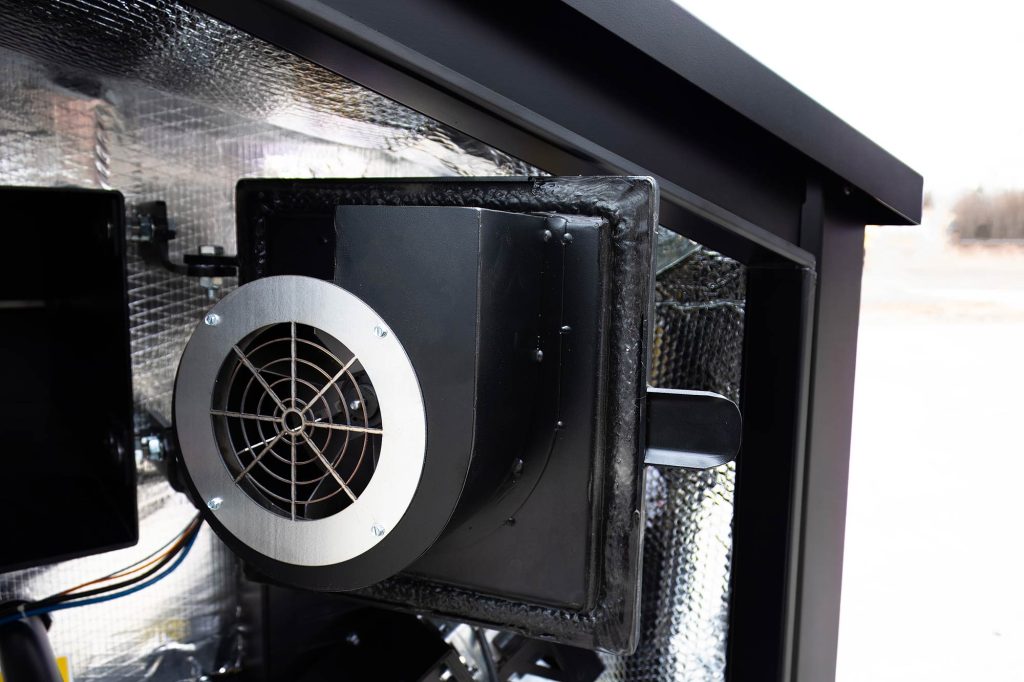

Self-Adjusting System

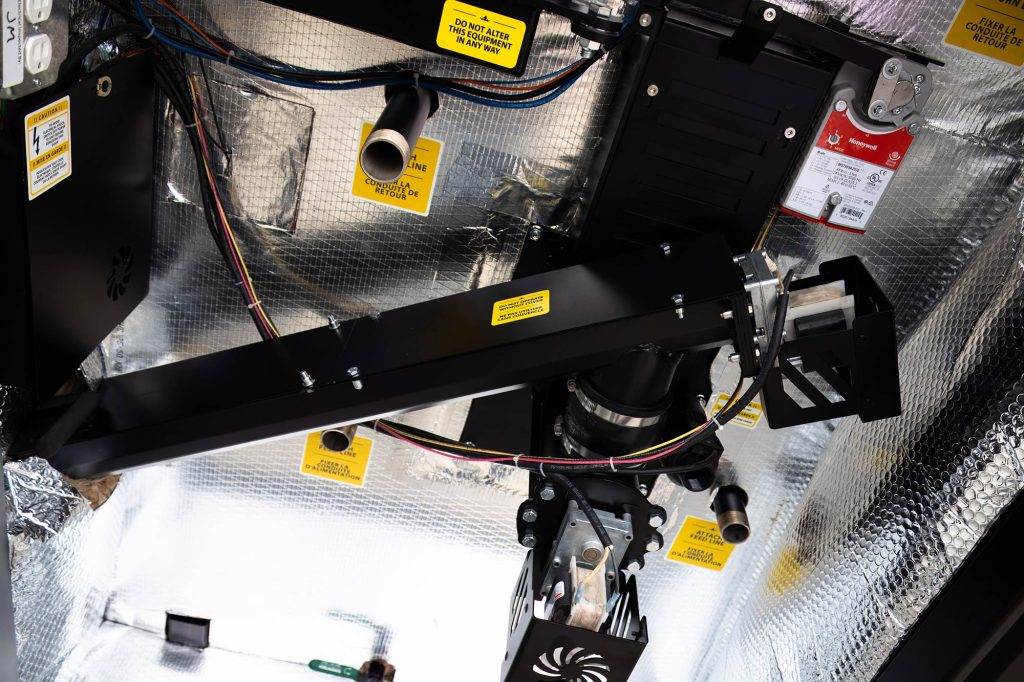

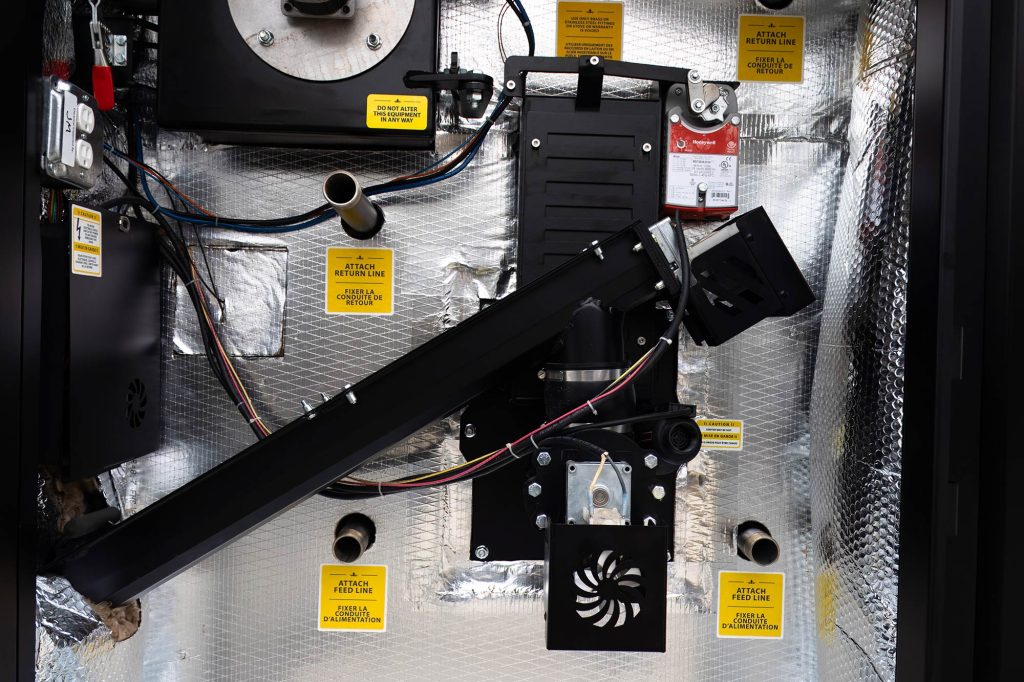

Self-modulating draft inducer and augers automatically adjusts both airflow and pellet feed rates to match actual heating demands, eliminating short-cycling and maximizing fuel economy.
Easy to Monitor

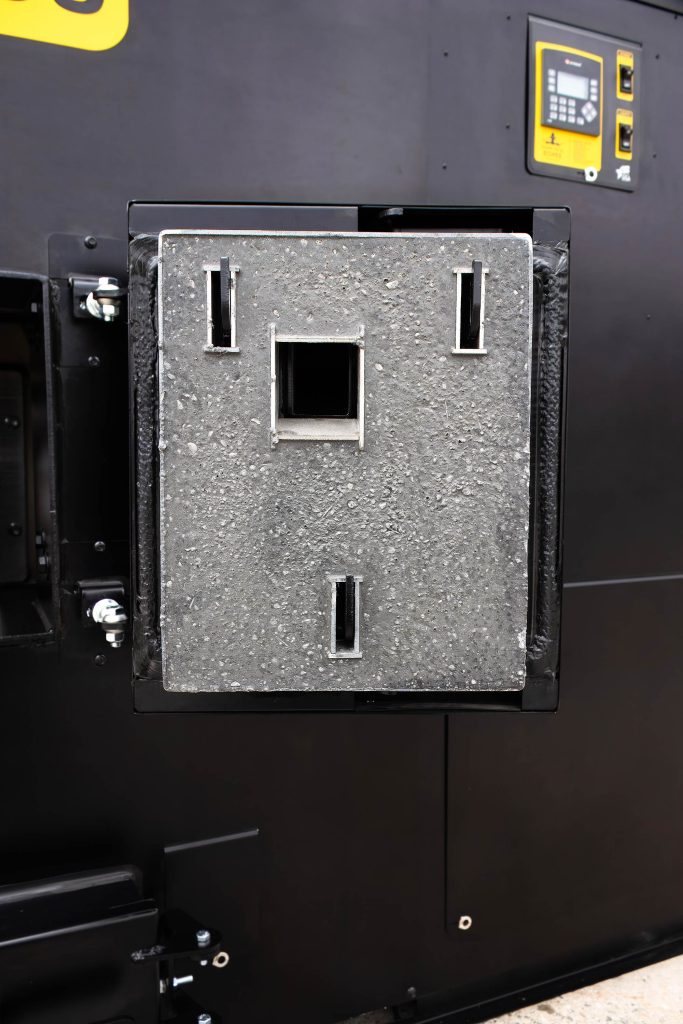

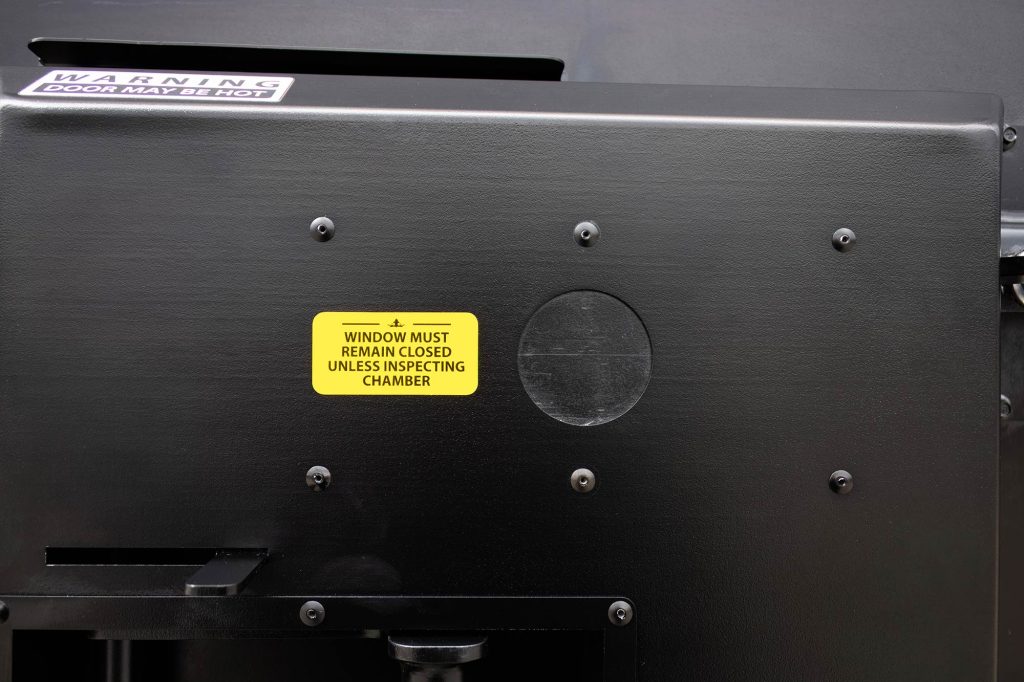

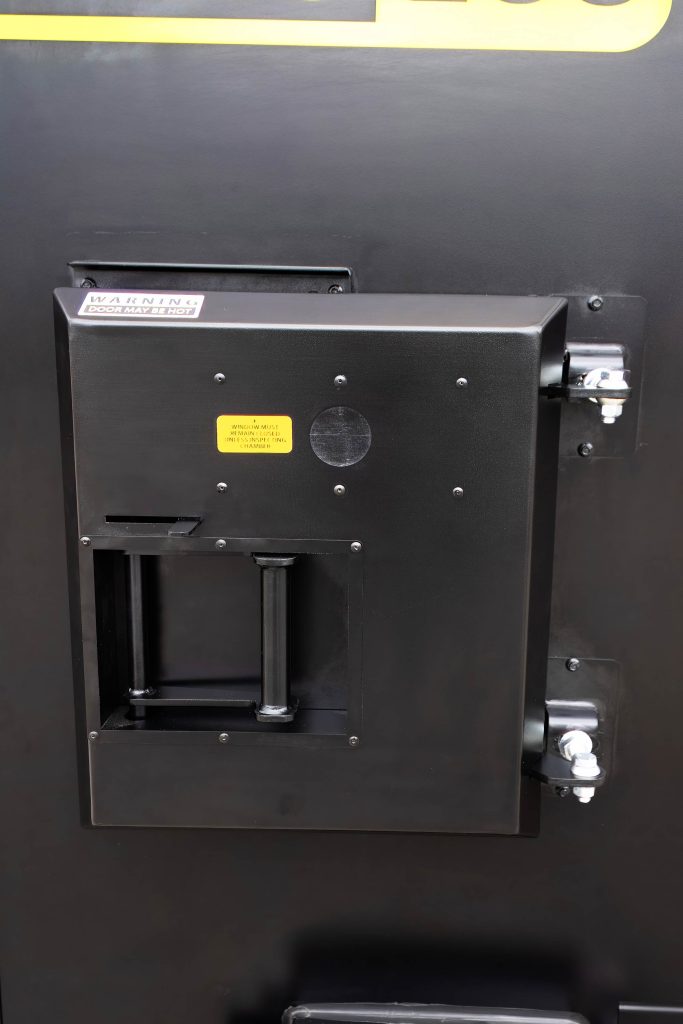

A sight glass in the firebox door lets you see the fire without opening the door, making it easy to monitor combustion while keeping heat contained.
applications
Residential Homes

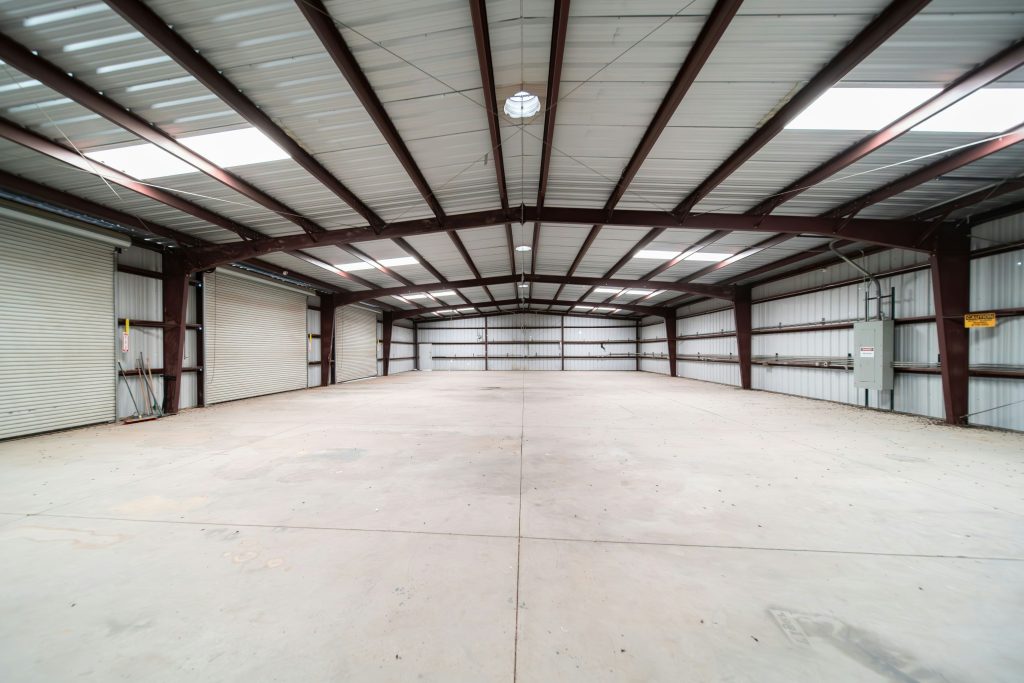

Commercial Spaces
Greenhouses
Barns & Agricultural
Provide dependable, automated heat for single-family homes, with extended burn times that reduce the need for frequent refueling.
Heating to support smaller businesses, offices, and other commercial spaces.
Maintain consistent temperatures in greenhouses and growing spaces through cold-weather conditions.
Provide dependable heat for barns, outbuildings, and agricultural spaces, with the flexibility to extend heating beyond the primary home.
Domestic Hot Water
Garages & Workshops
Snow-Melt Systems
Radiant In-Floor Heating
Provide hot water for homes and other properties with compatible domestic hot water systems.
Keep garages, workshops, and other workspaces comfortable without bringing the furnace or fuel handling indoors.
Provide heat for snow-melt systems designed to help keep driveways, walkways, and other outdoor surfaces clear during winter.
Deliver comfortable, even heat through radiant floors in homes, garages, workshops, barns, and other spaces.
Frequently Asked Questions
Yes, the Bio 200 can replace an existing Outdoor Boiler. The Bio 200 can be set on a pad in multiple orientations with the added floor knock-outs on the sides and rear of the unit.

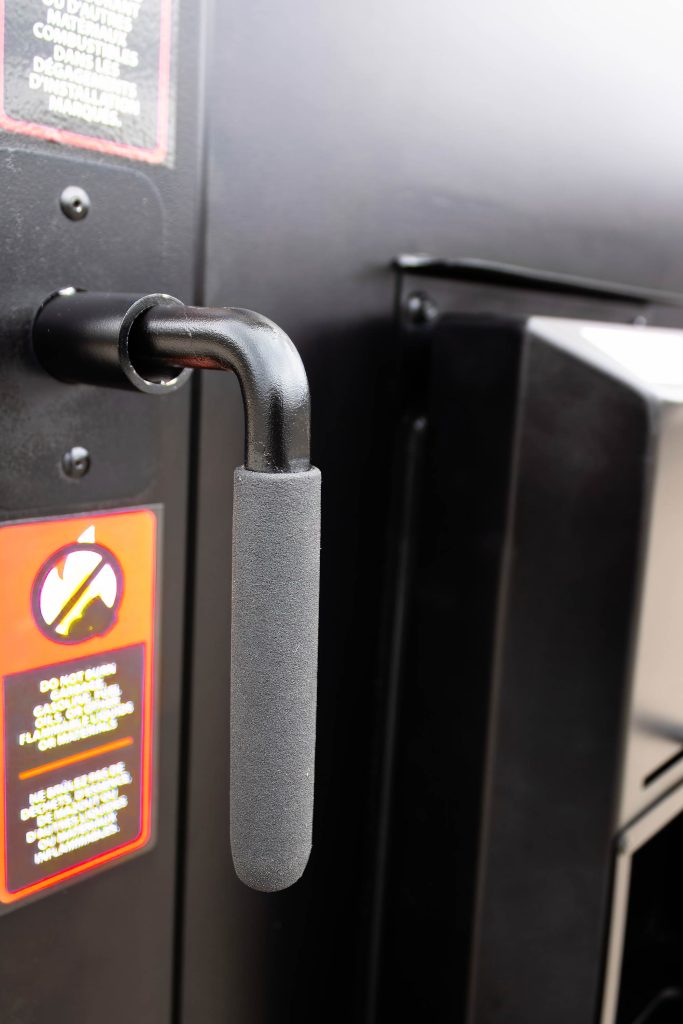

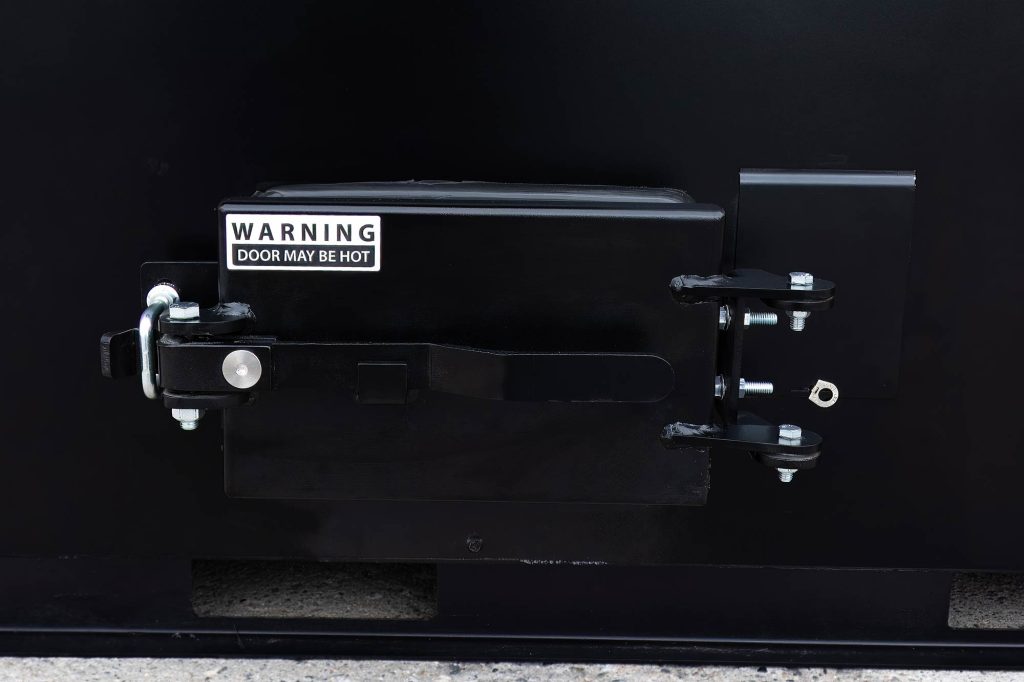

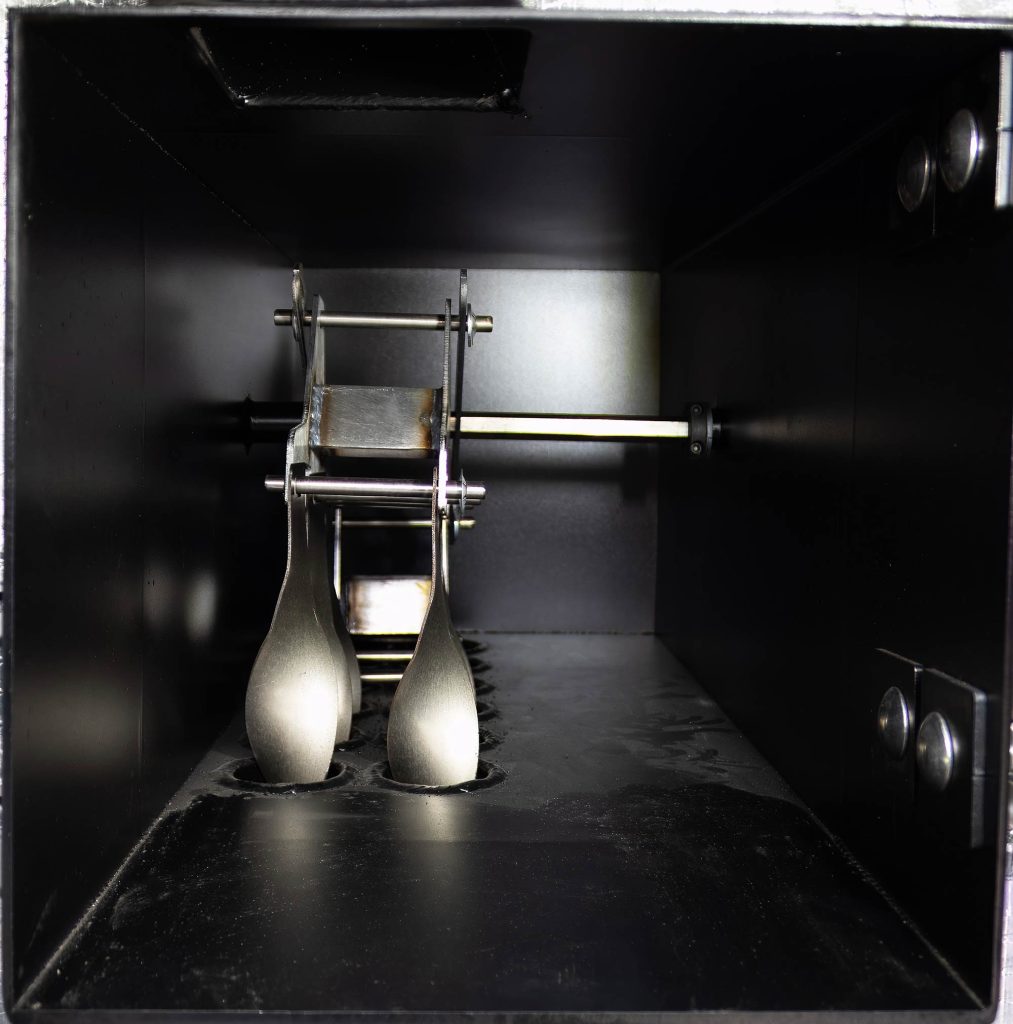

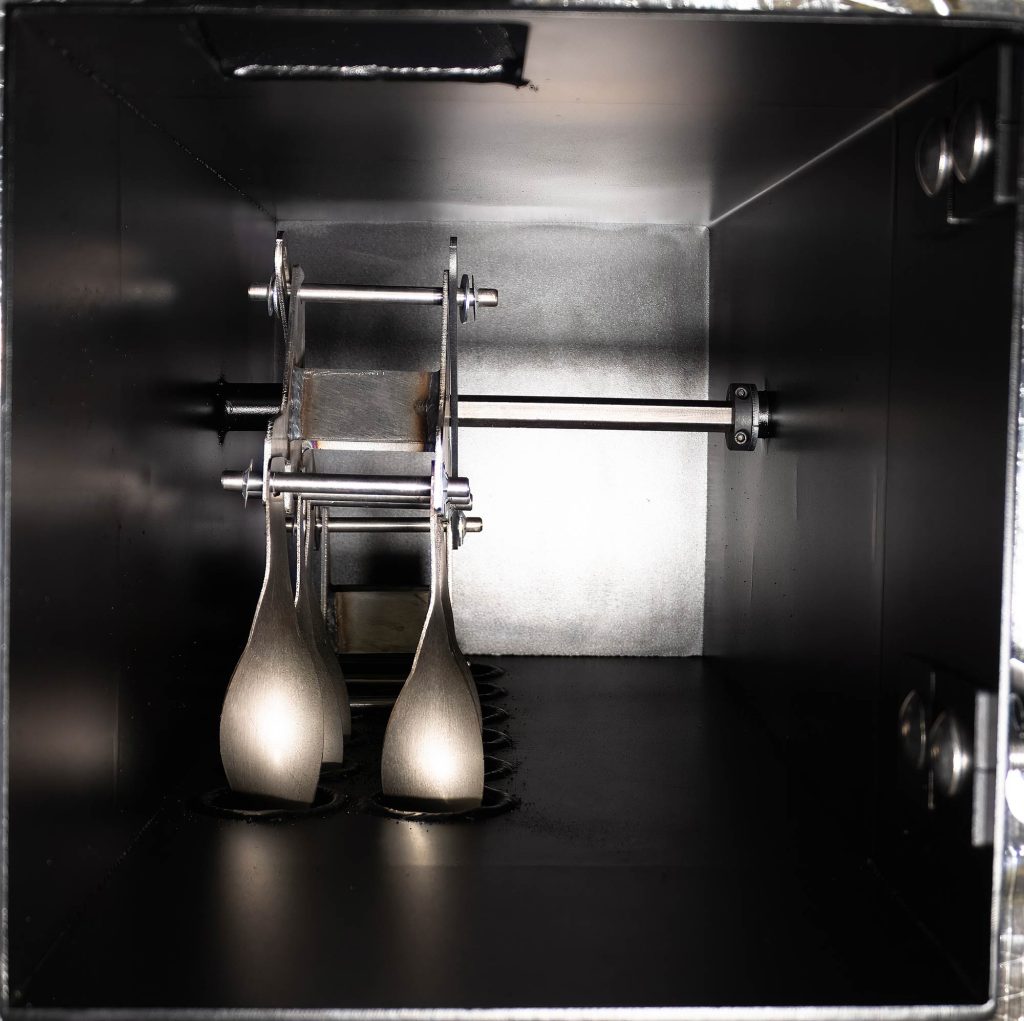

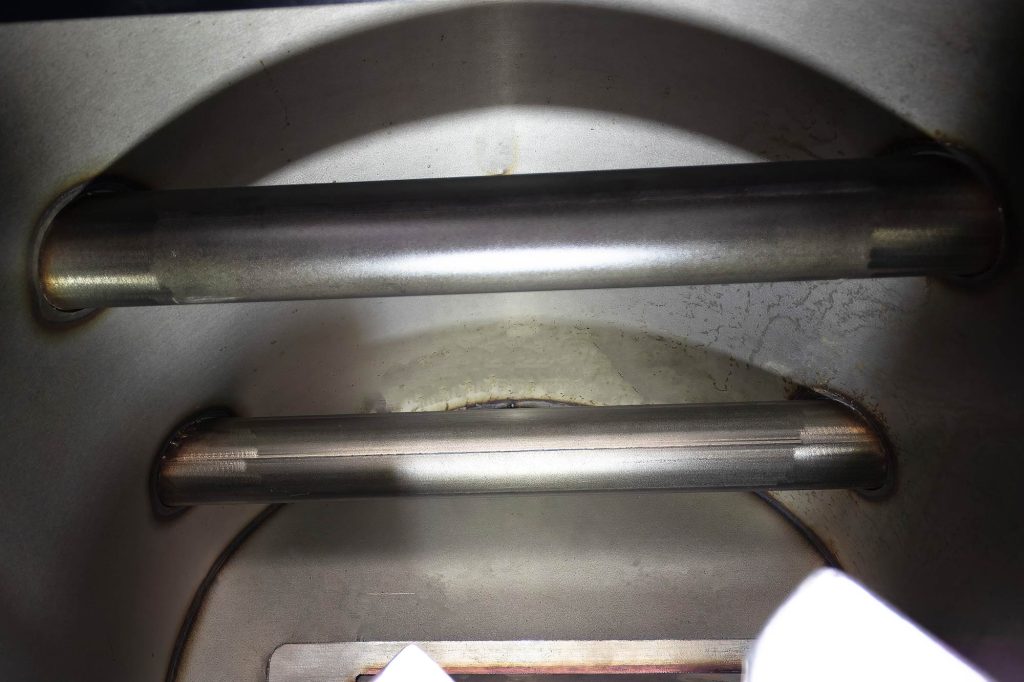

It is recommended to clean the ashes out of the Bio 200 weekly. Cleaning the Heat exchange tubes greatly increases the efficiency of the Bio 200. The Bio 200 will come with an assortment of cleaning tools.
No, Crown Royal Stoves does not require the use of glycol in their boilers. If Glycol is used, the recommended ratio is 35-40% of glycol to water. This must be a propylene glycol specifically formulated for heating applications. Crown Royal stoves requires the use of “Control” rust inhibitor. This can be purchased from a Crown Royal Stoves Dealer.

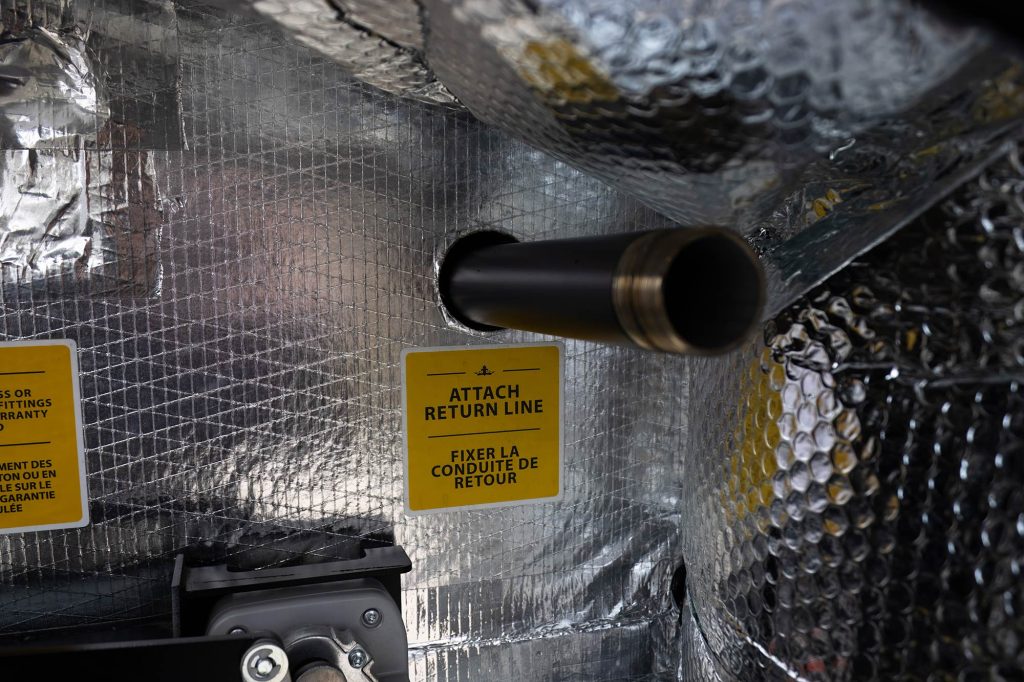

Yes, however it is highly recommended to replace old lines with new to ensure maximum efficiency and avoid cool return temperatures.
The Bio 200 can be used with just about any existing heating system such as: forced air systems, hydronic sytems, radiant infloor & baseboard. The Bio 200 can also be used to heat domestic hot water.
Depending on fuel quality and heating load, with the hopper and augers full of fuel, you can go days to weeks before needing to refill the fuel hopper.
Use only top-quality, residential grade A wood pellets for best performance. Top quality wood pellets have a moisture content under 10%. The Bio 200 can burn both soft & hardwood pellets.
Grade A wood pellets have a lower moisture content, produce less Ash meaning less cleaning. Grade A wood pellets also have a higher energy density, reducing the amount of wood pellets needed & less refueling.
The Bio 200 comes with a preset temperature set point of 180 Degrees F with a 10 degree temperature differential meaning no adjustments are needed. The Bio 200 features a self-modulating draft inducer and augers automatically adjust both airflow and pellet feed rates. If poor quality pellets are used, manual adjustments on the controller may need to be made to the feed rate and fan speed.
No, the Bio 200 has an automated ignition system provides rapid, ultra-reliable fire startups without the need for manual lighting.
